Header Welding Purge Plate: Small Block Ford 289/302/351w Based Heads

Features:

• (4) Unique Bolt Patterns- Small Block Ford Windsor-Base Bolt Patterns: 2" Spaced OEM Style Pattern, 3" Spaced Z304/AFR/Dart Pro1 Style Pattern, 2.5" Spaced Edelbrock Victor Sr. Style Bolt Pattern, and High-Port Diagonal Bolt Pattern
• (4) Independent Purge Inlet Fittings.
• (4) Independent Purge/Argon Diffusers
• 1" Thick Billet Aluminum heat sink
• Hard-Coat Anodized Finish for Durability
• Laser-Engraved Bolt Pattern Identification & Description

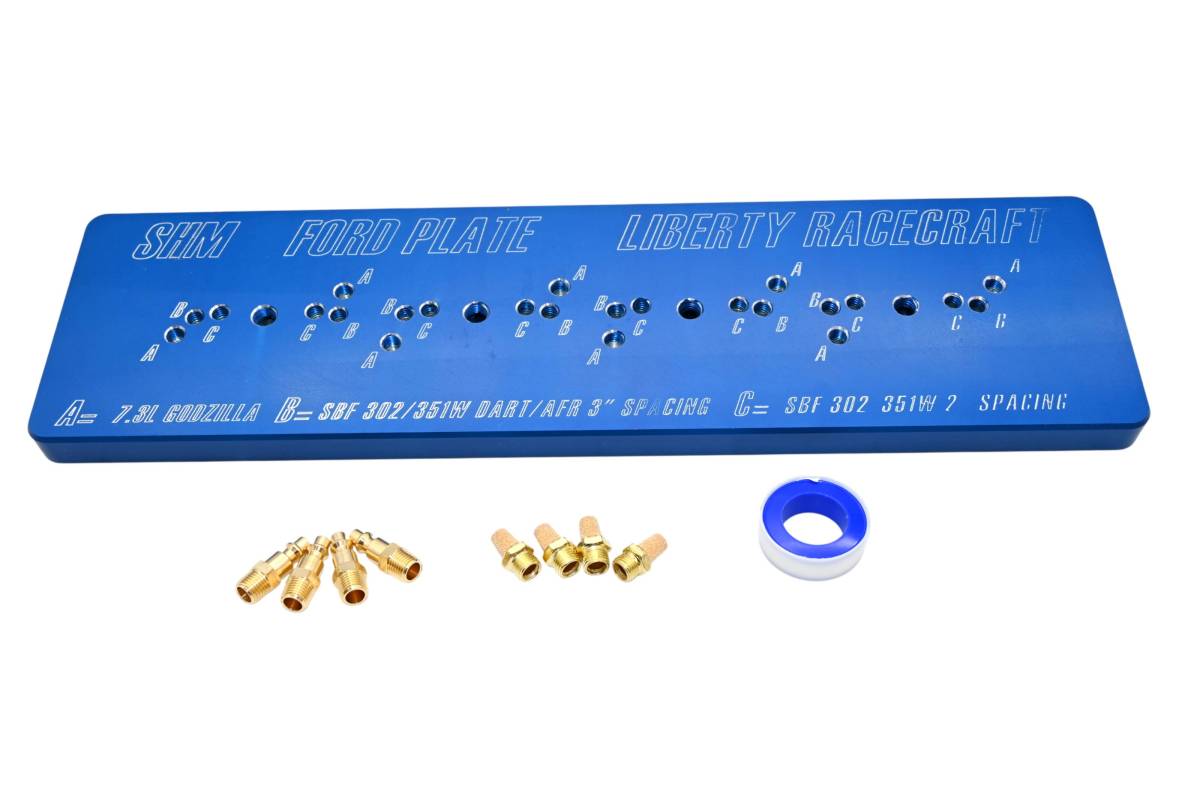

Kit Contents:

• (1) Small Block Ford 289/302/351w Purge Plate

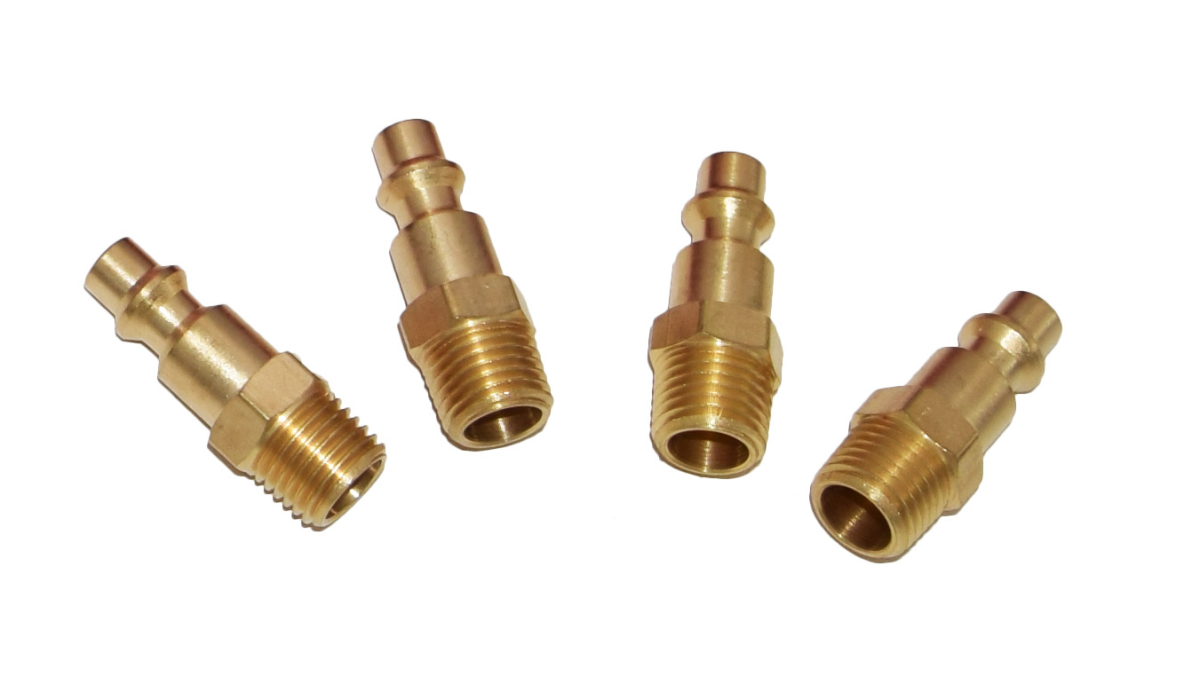

• (4) 1/4" NPT Air-Style Male Quick-Connect Fittings

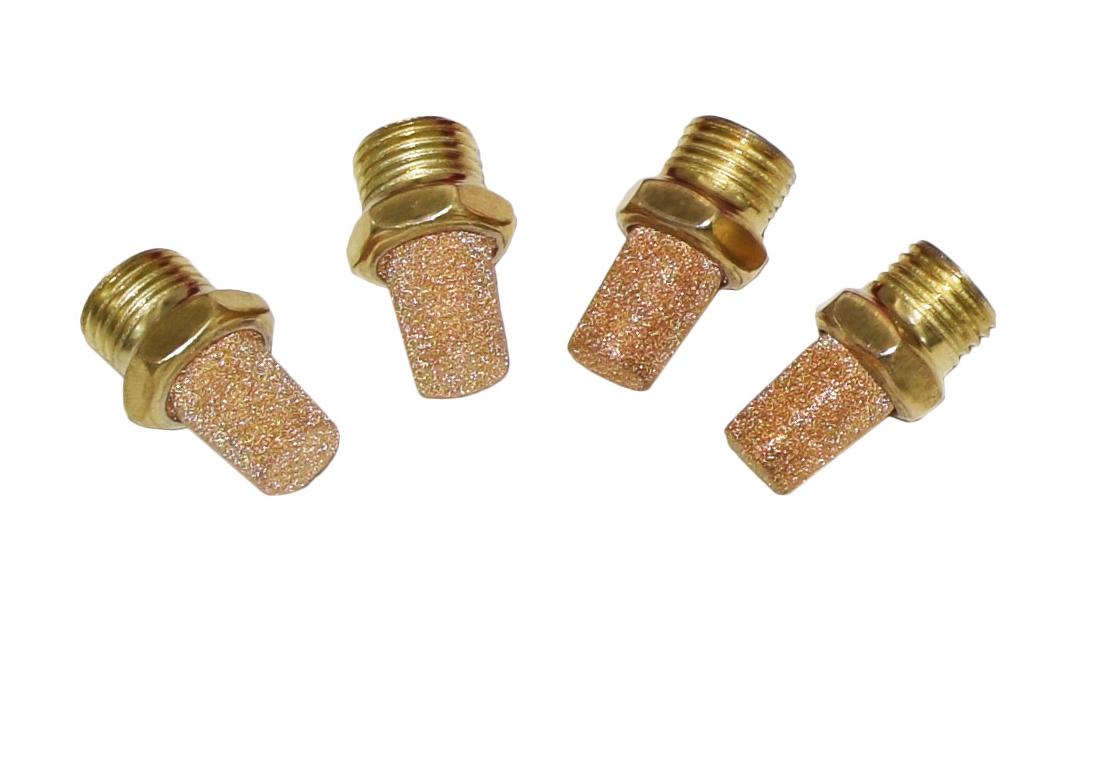

• (4) 1/4" NPT Argon Diffusers

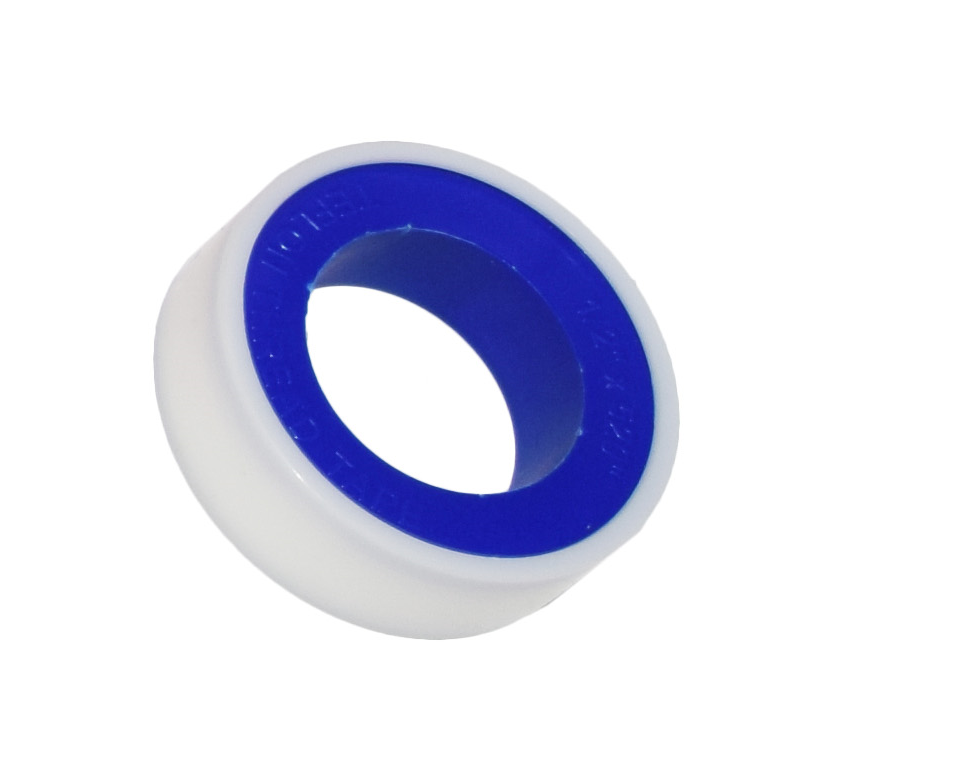

• (1) Roll of PTFE Thread Tape

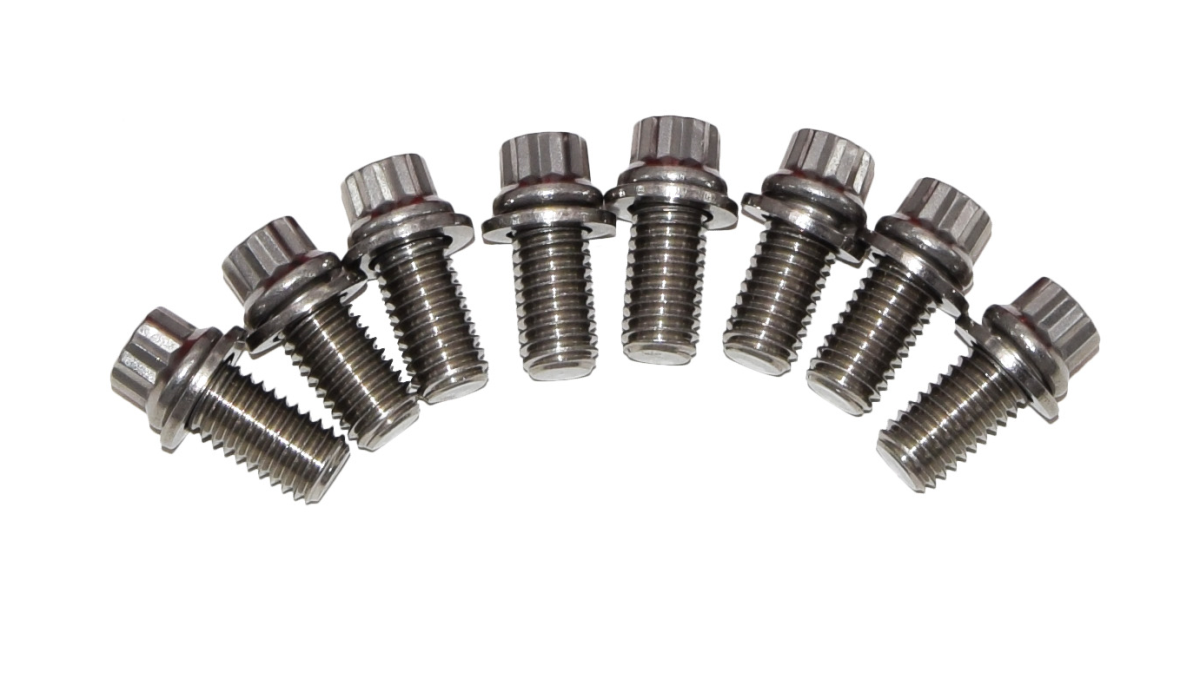

• (1) ARP #400-1110 Stainless Header Bolt Kit (6pt, 1" Long, Stainless Header Bolts (x16)

Optional Add-On's:

• (1) Pair of Matching Header Gaskets (Select your application)

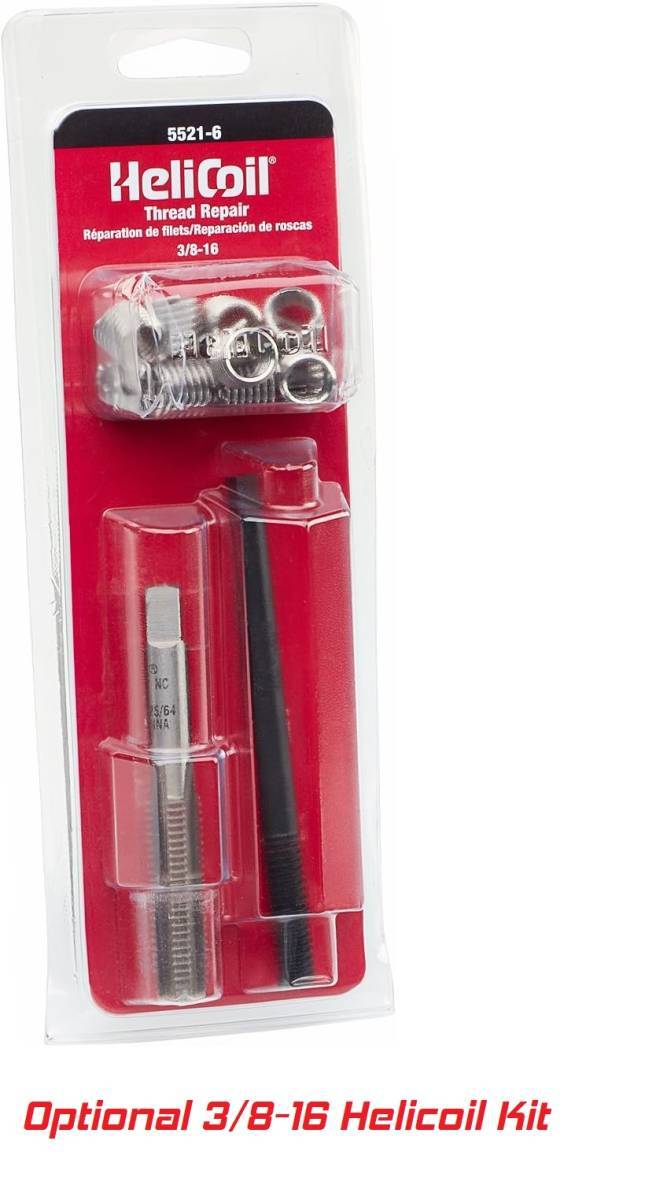

• (4) 3/8" Helicoil Kit for thread repairs

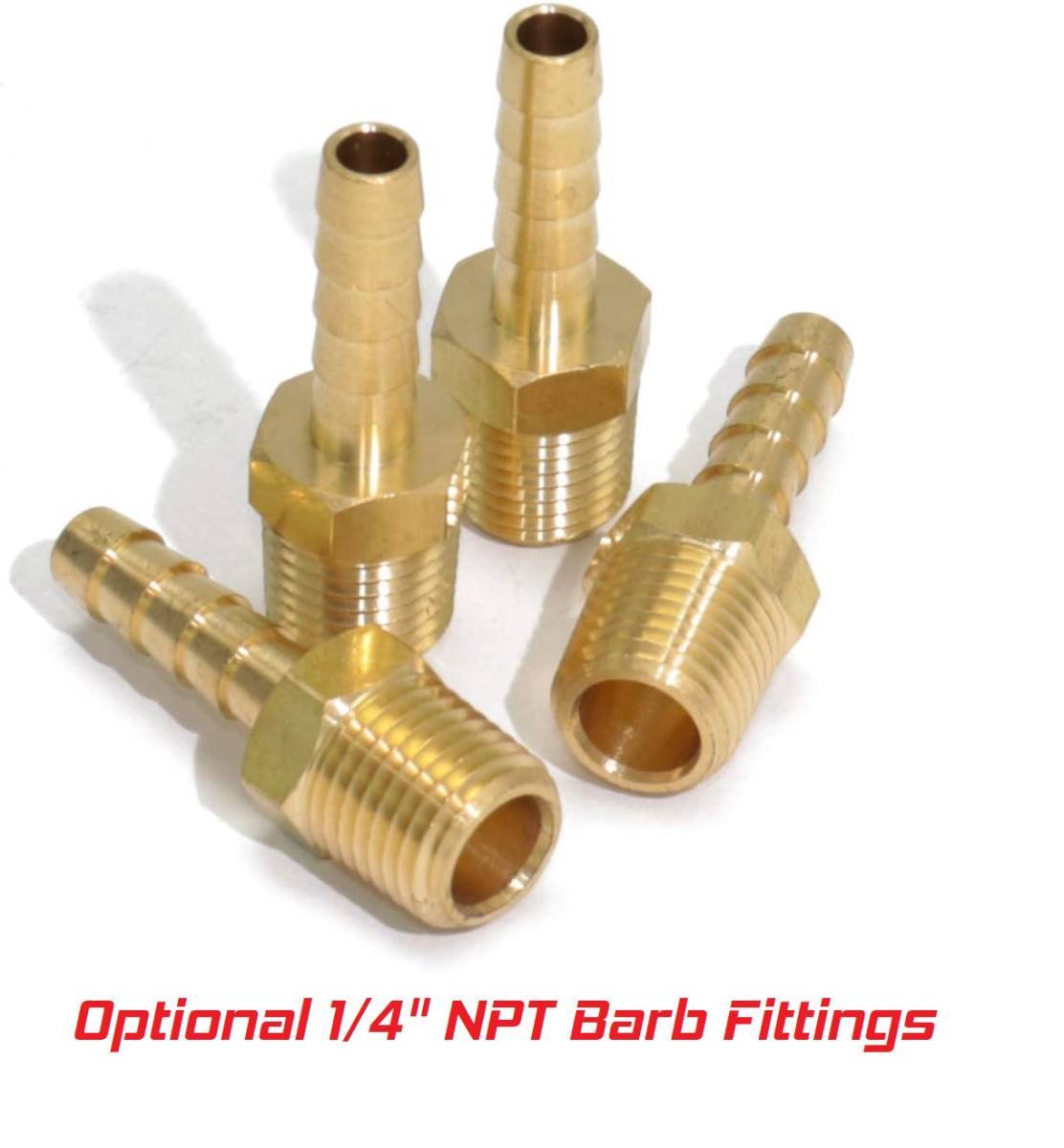

• (4) 1/4" NPT Barbed Hose Fittings (add-on, kit will ALSO come with standard quick-release style fittings)

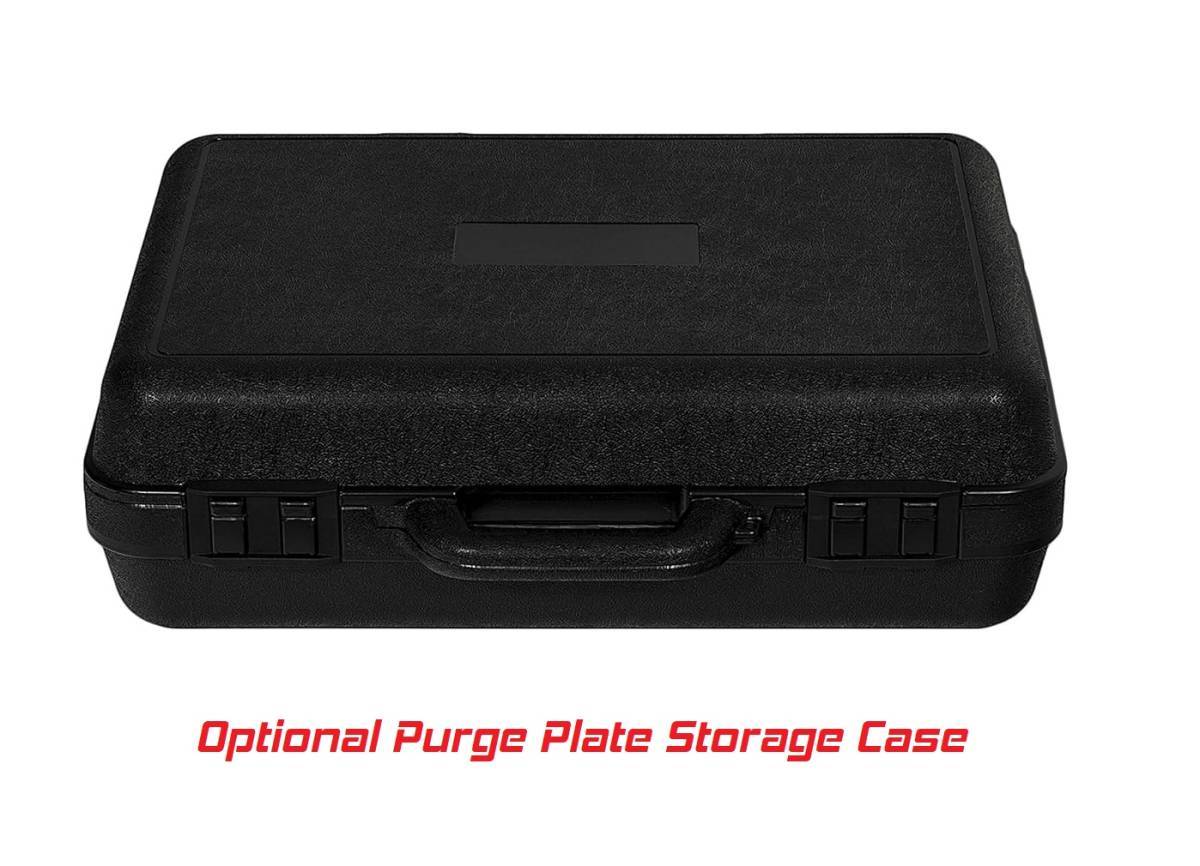

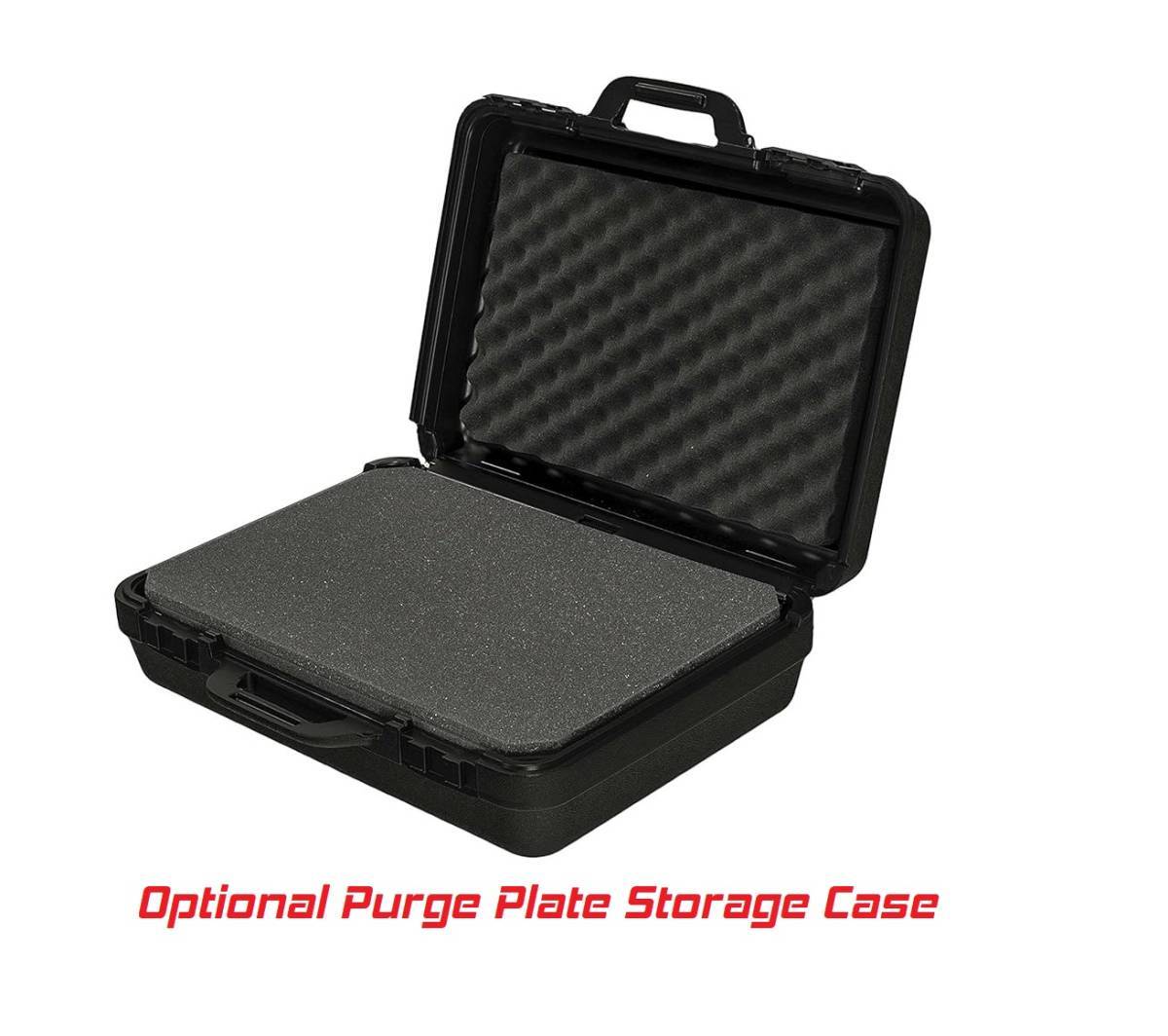

• Hard-Shell Storage/Carrying Case

A revolutionary tool from Stainless Headers Mfg., Inc. These purge plates combine the best solutions for your header welding needs, without compromising anywhere. They are CNC machined from 1” thick billet aluminum, and finished in a hard anodized coating. Each purge plate is themed for a particular combination of cylinder heads to maximize a builder’s efficiency.

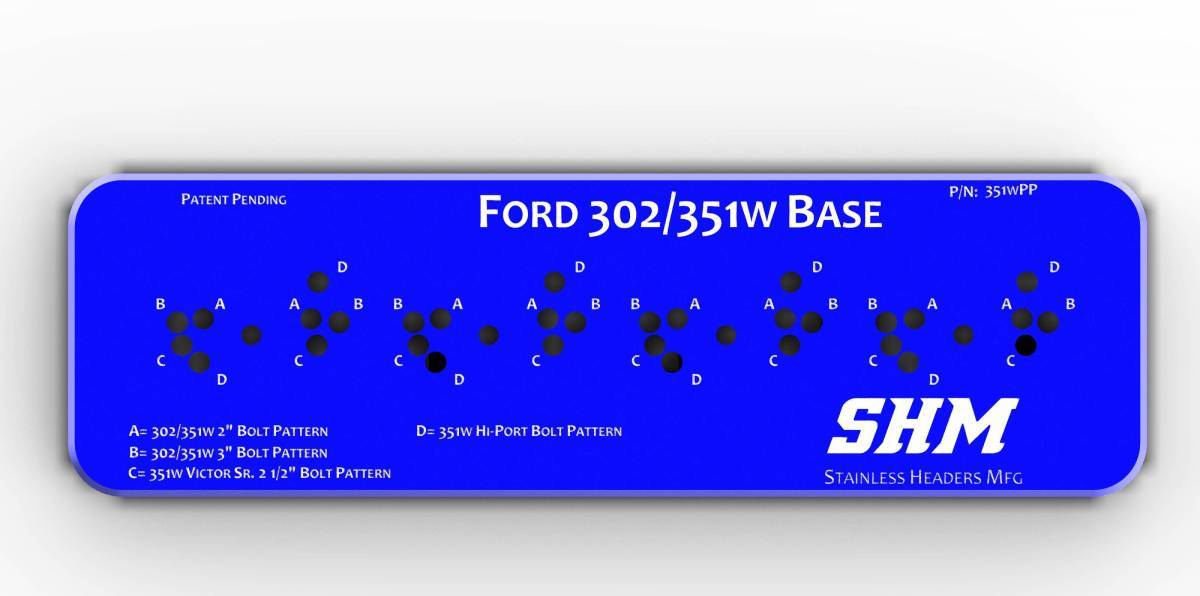

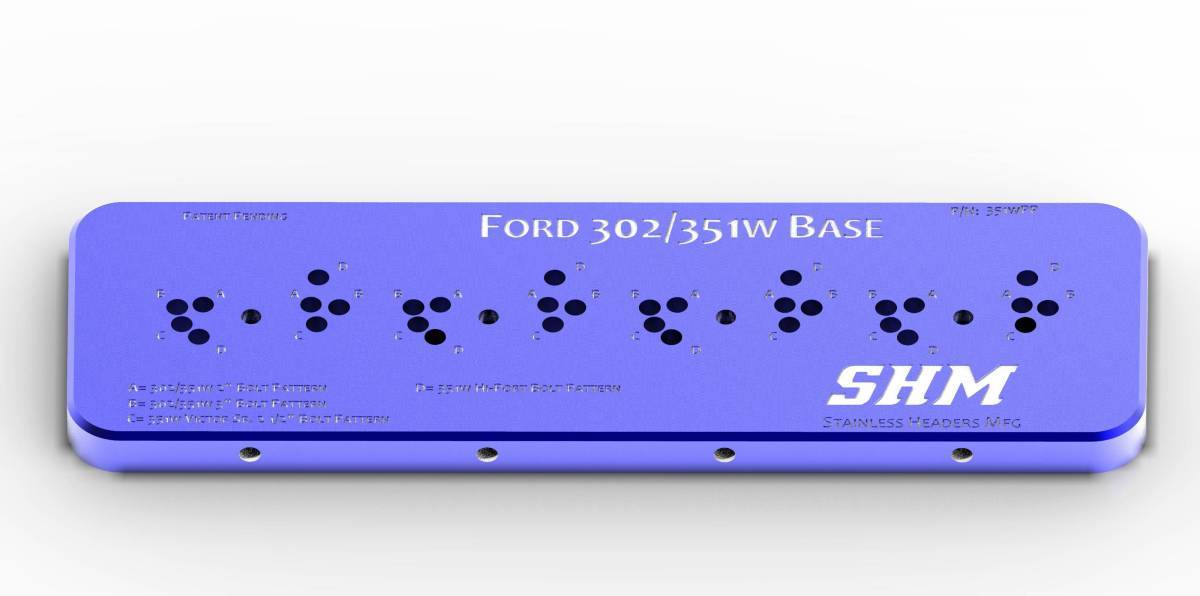

Our Small Block Ford Purge Plate combines a 2" Spaced OEM Style Pattern, 3" Spaced Z304/AFR/Dart Pro1 Style Pattern, 2.5" Spaced Edelbrock Victor Sr. Style Bolt Pattern, and High-Port Diagonal Bolt Pattern into one convenient tool.
Each pattern features every bolt, drilled & tapped for standard 3/8” header bolts, allowing the builder to maximize clamping force against the purge plate.

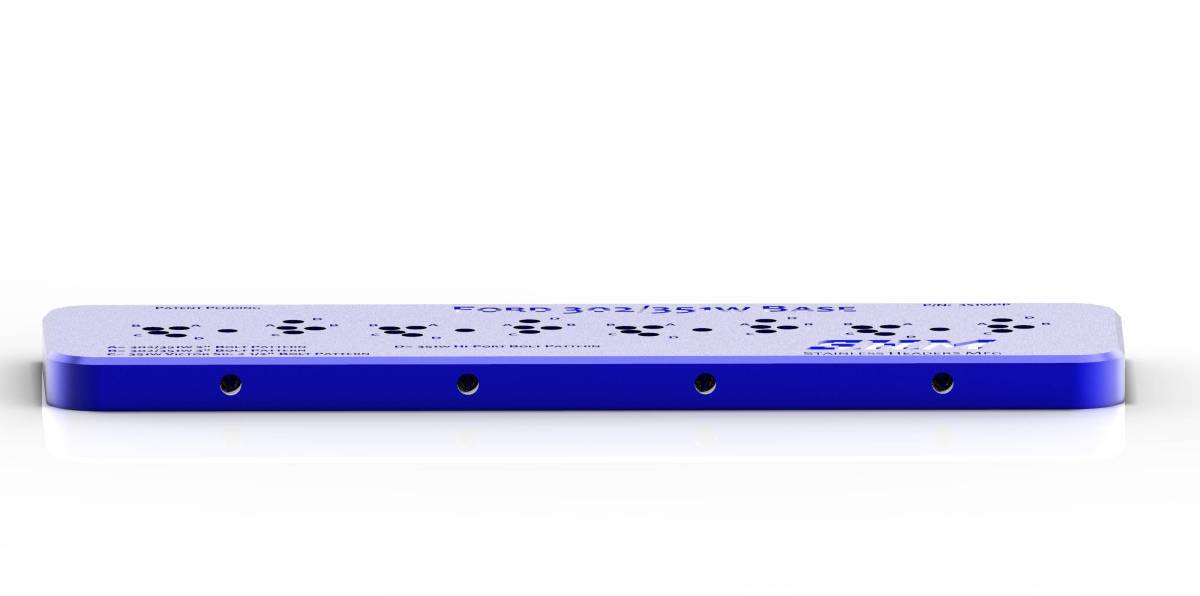

Each port also includes a top-mounted ¼” NPT port for various purge fittings.

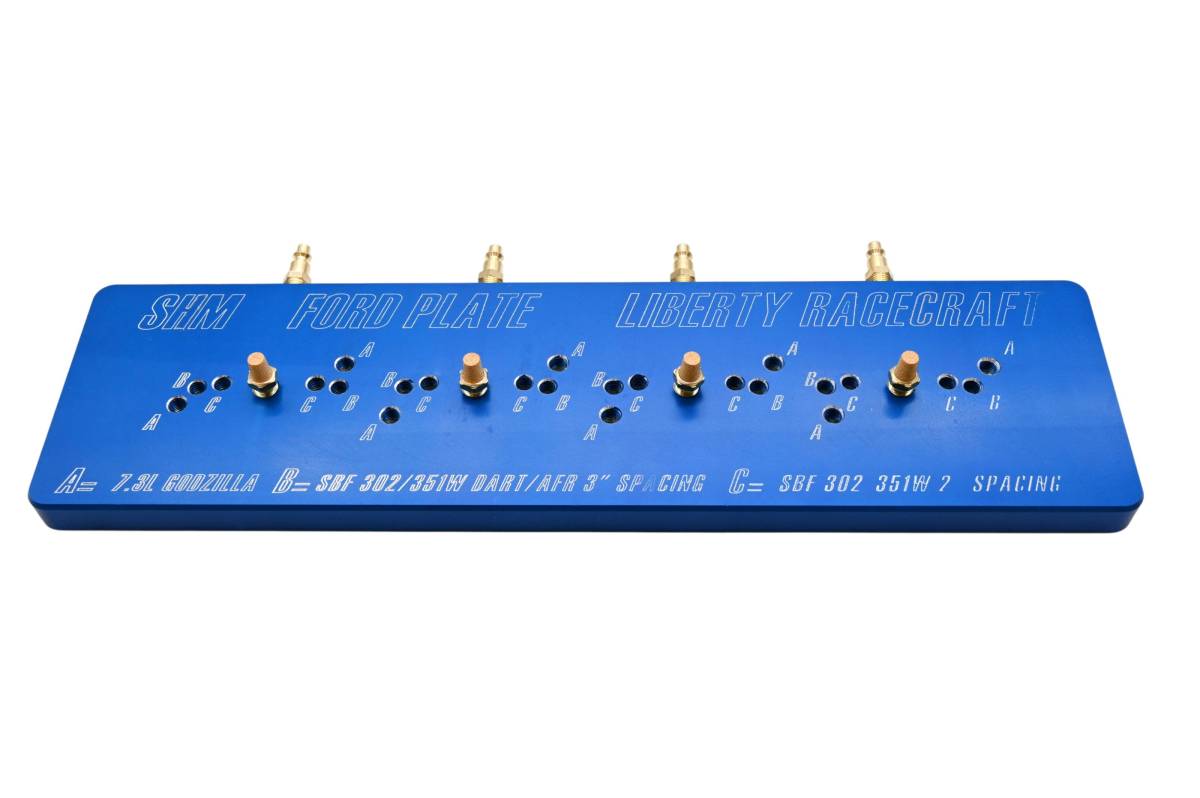

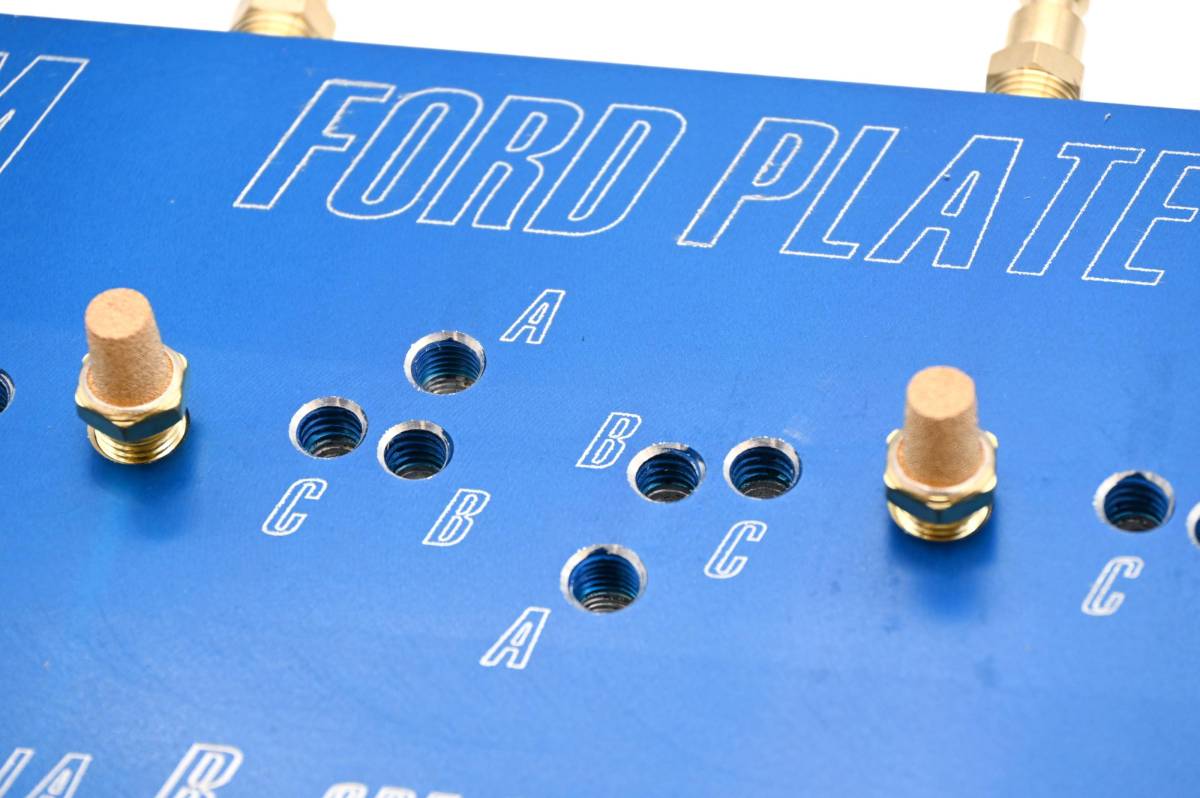

Each plate comes with argon diffuses already installed in these port centers, to maximize argon coverage for flange welds and efficiently purging your header system- creating stronger welds, reduced contamination, and lower argon usage. The front face of each port has a purge line and quick-connect fitting built in, ready for a quick-connect argon line to efficiently swap your purge line between cylinders, continuing to save on argon costs, while improving weld quality.

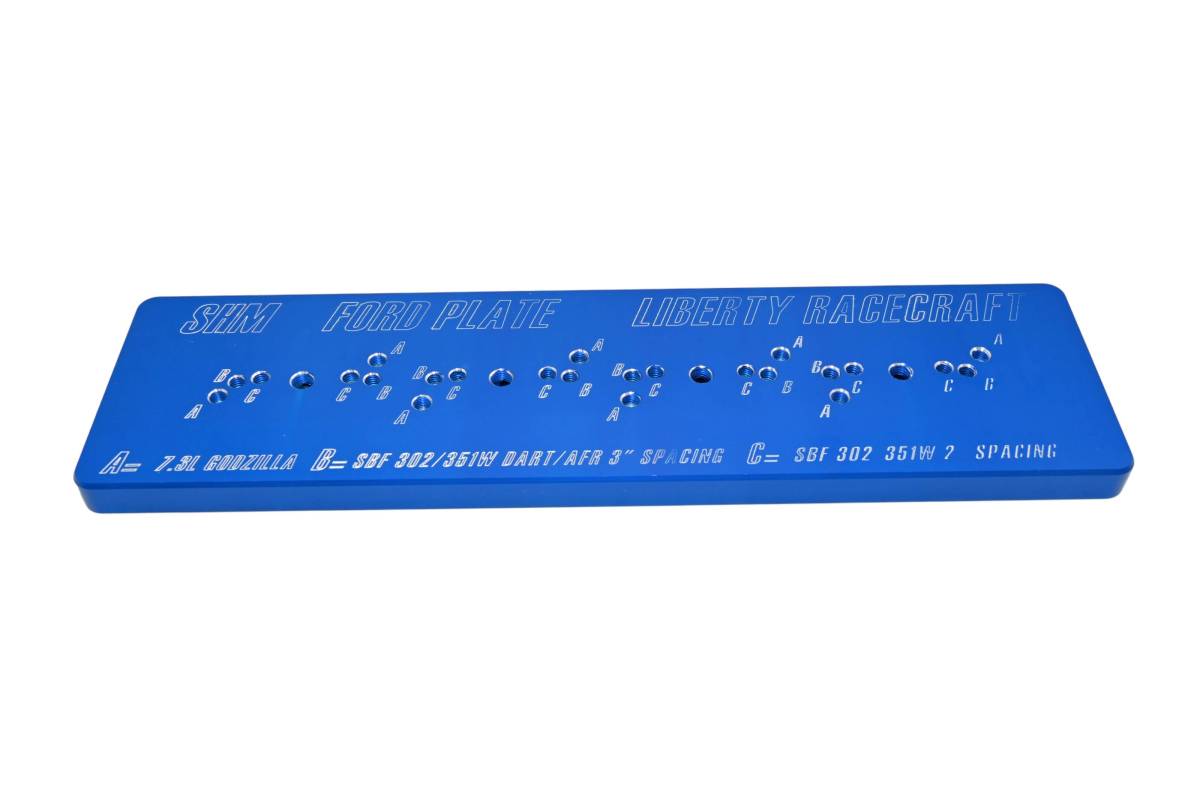

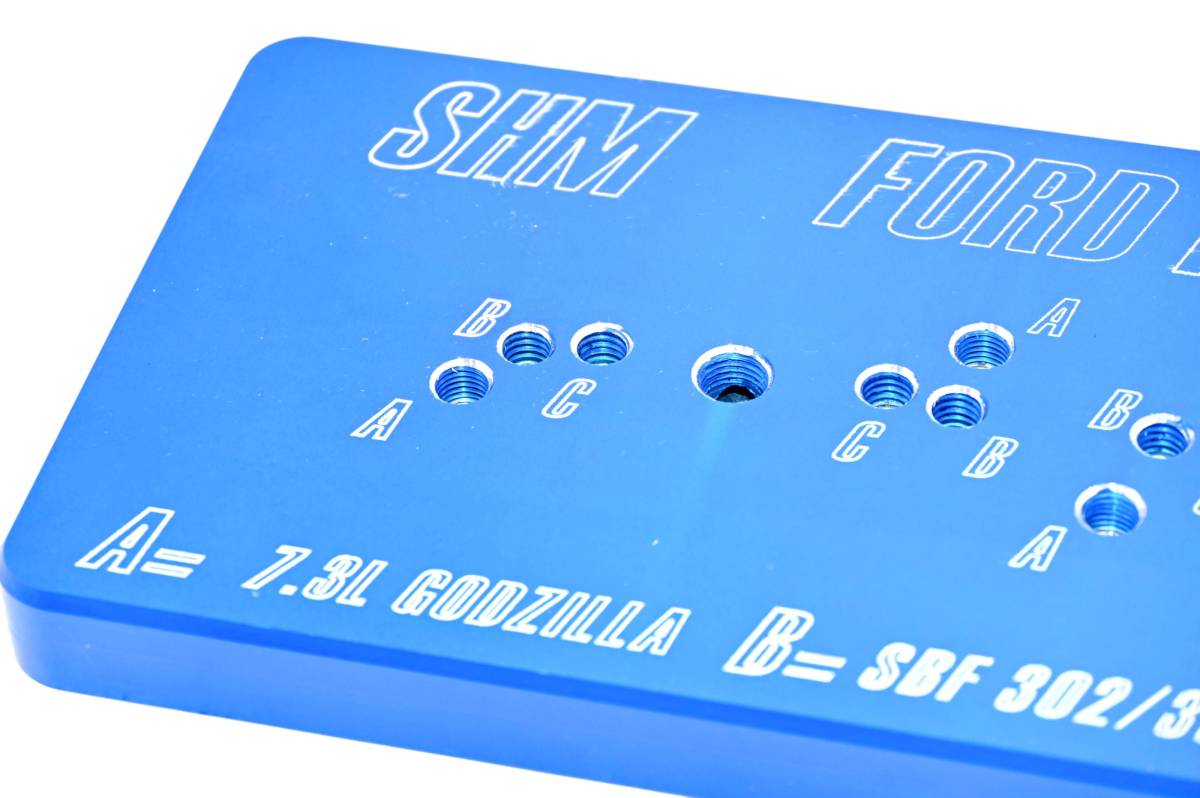

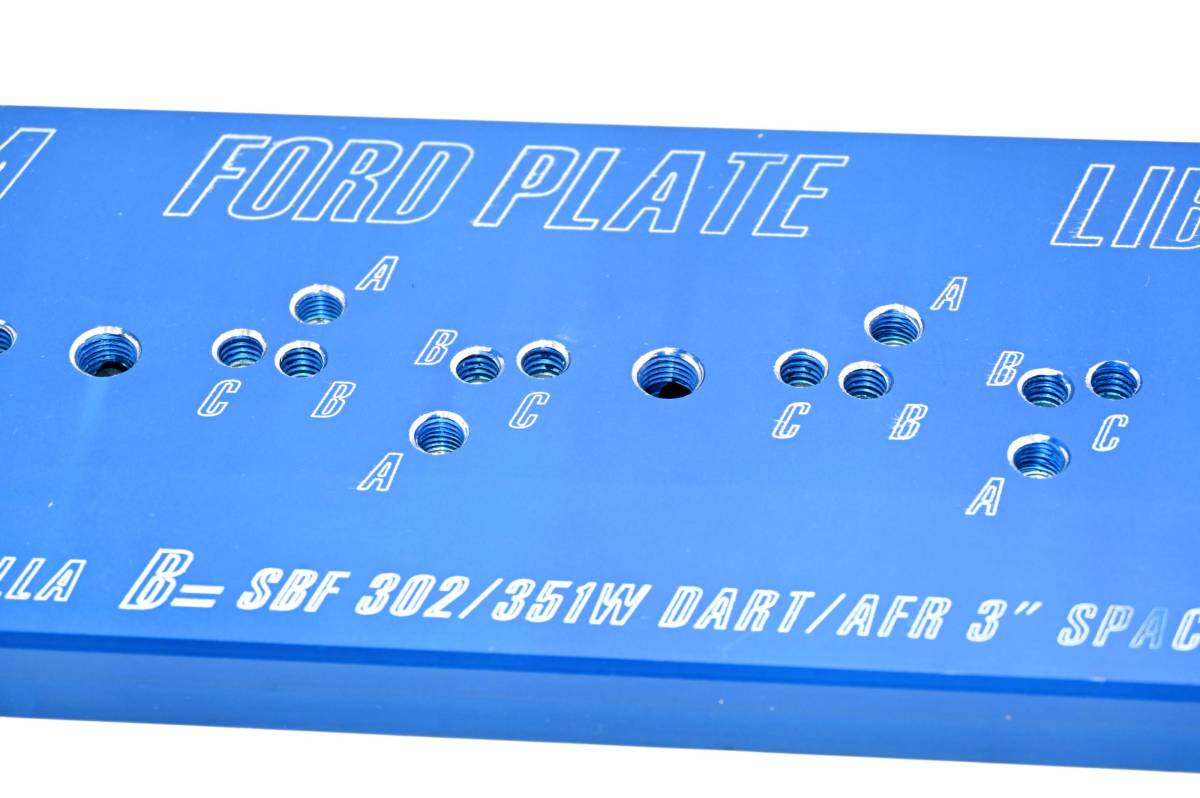

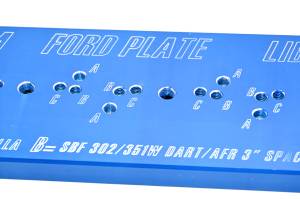

Every Purge Plate comes engraved with bolt pattern identification, and a short description of applicable cylinder heads the bolt pattern connects with. These Purge Plates are the perfect Welder’s Helper when it comes to effective heat sink, argon usage, bolt pattern verification, and maintenance free upgrades to your welding arsenal. The combination of bolt patterns drastically reduces costs by saving on quantity of tools required for any weld shop, and maintaining complete clamping force. With over 100 variants, there is a plate to cover all of your header welding needs.

Patent Pending
