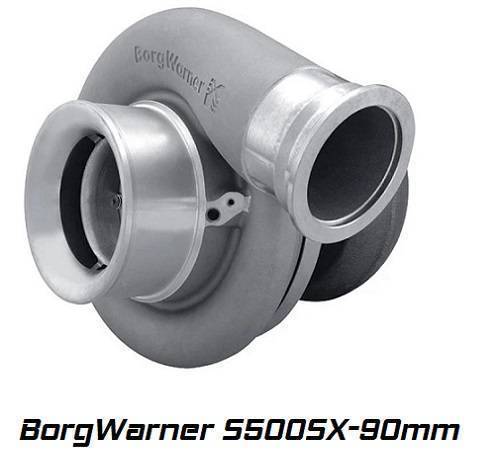

BorgWarner S500SX Series Turbo- 90mm #179191

This BorgWarner S500SX Turbo has an A/R of 0.85, T4 inlet flange, twin scroll housing, 91 mm compressor inducer, 99 mm exducer, and an 110 mm turbine wheel. This is a complete turbo, ready to bolt on to any application with a horsepower range of 900-1475 HP.

S400SX4 Turbocharger

• 91mm/3.57'' Compressor Inducer Dia.
• 120mm/4.73'' Compressor Wheel O.D.
• 99mm/3.90'' Turbine Exducer Dia.
• 110mm/4.32'' Turbine Wheel O.D.
• 0.85 Turbine A/R
• T4 Twin Flow Turbine Inlet
  Straight Compressor Outlet
• BorgWarner #179191
