Small Block Ford Victor Senior/Track 1 Turbo Headers

SHM-MTH-3543-304
Small Block Ford Victor Senior/Track 1 Turbo Headers
Availability: Current lead times are <2 weeks
Pricing: $1,144.95

Customize Your Item

- Modular V-Band Elbows -
 * required

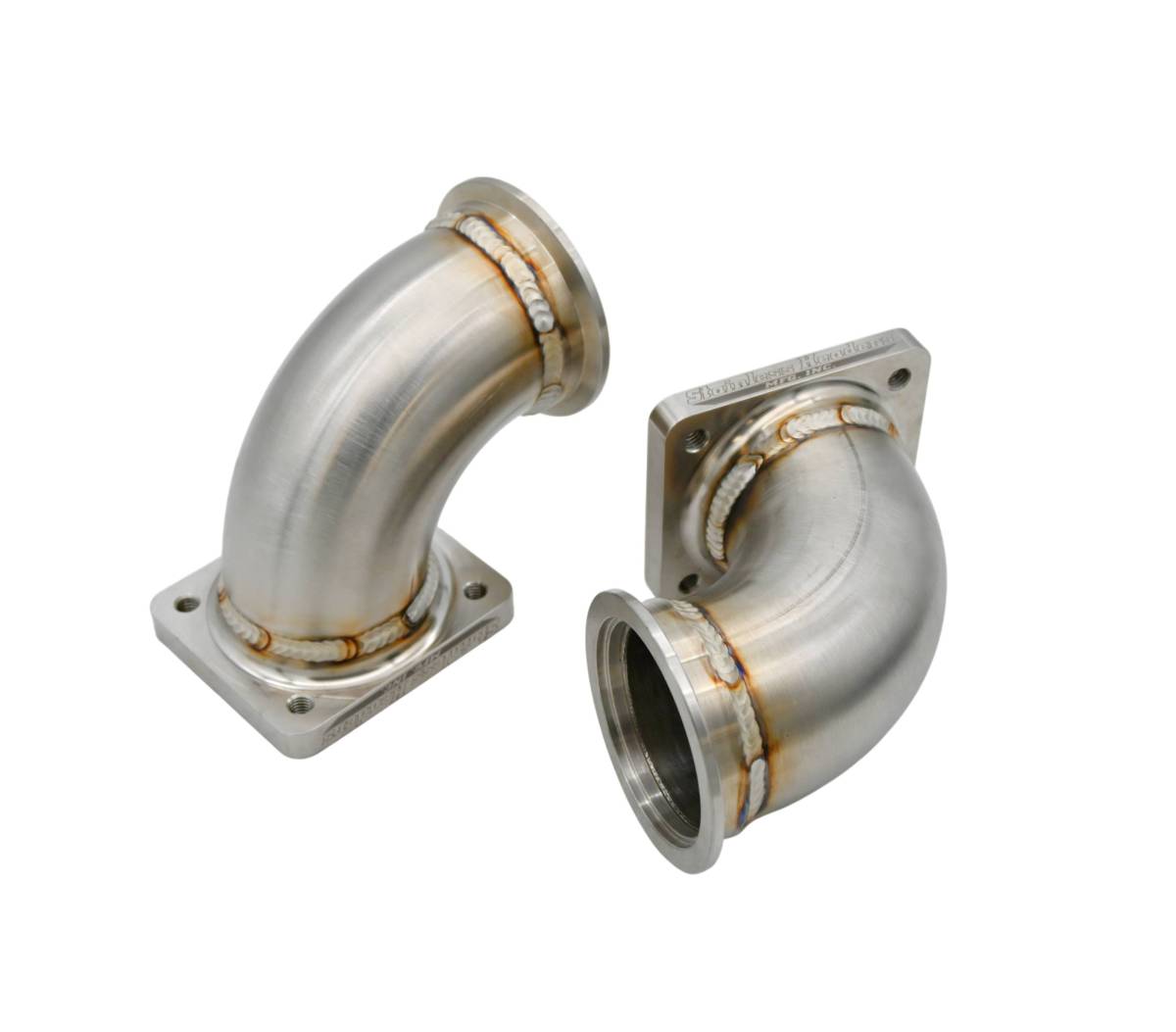

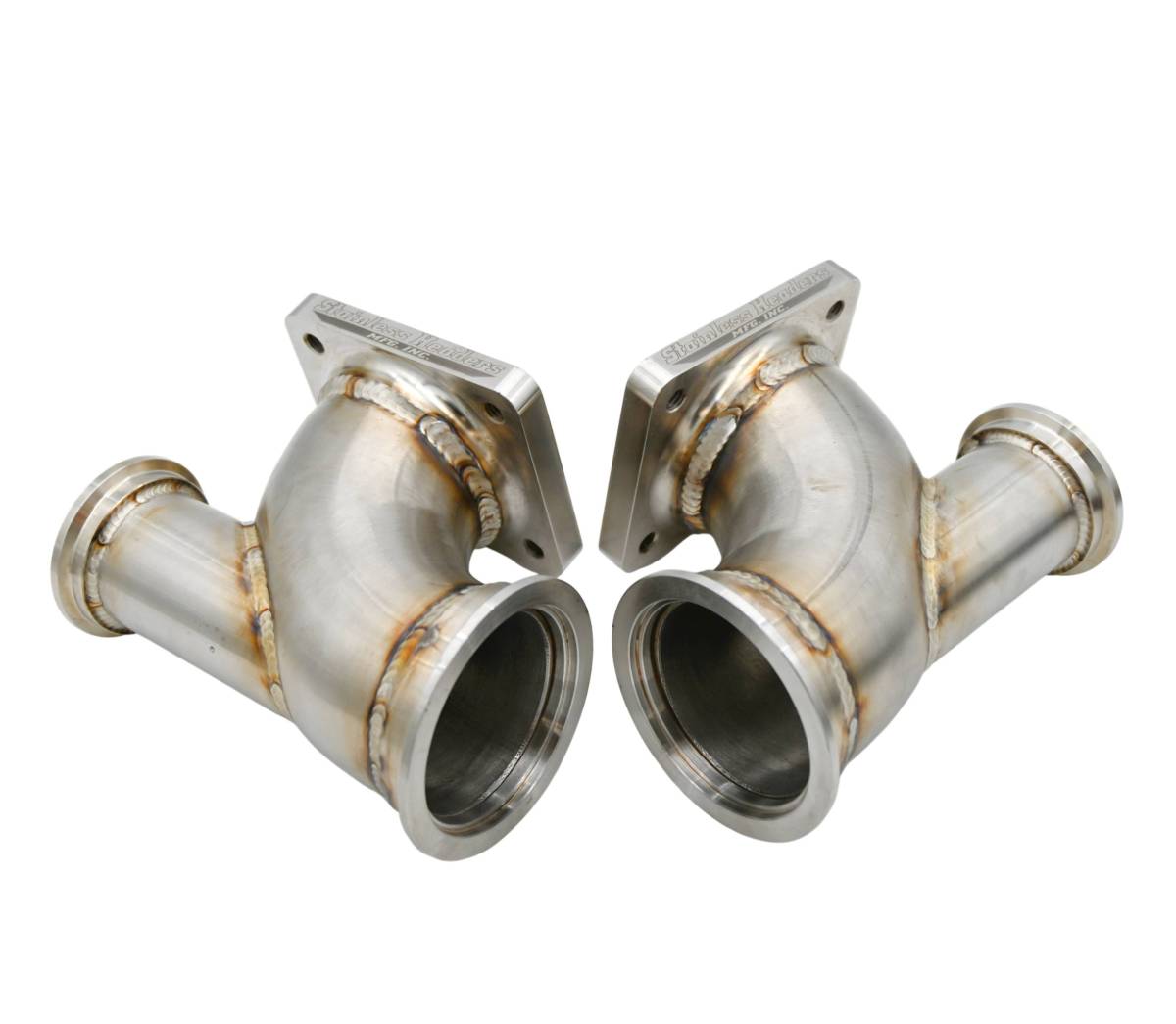

- Turbo Mount Elbows -
 * required
- Ceramic Coating -
 * required
- Power-Size Upgrade -
 * required
- Select Wastegate Type (requires -
 * required
- Add Header Bolts? -
 * required
Qty:
Free GROUND Shipping

Description

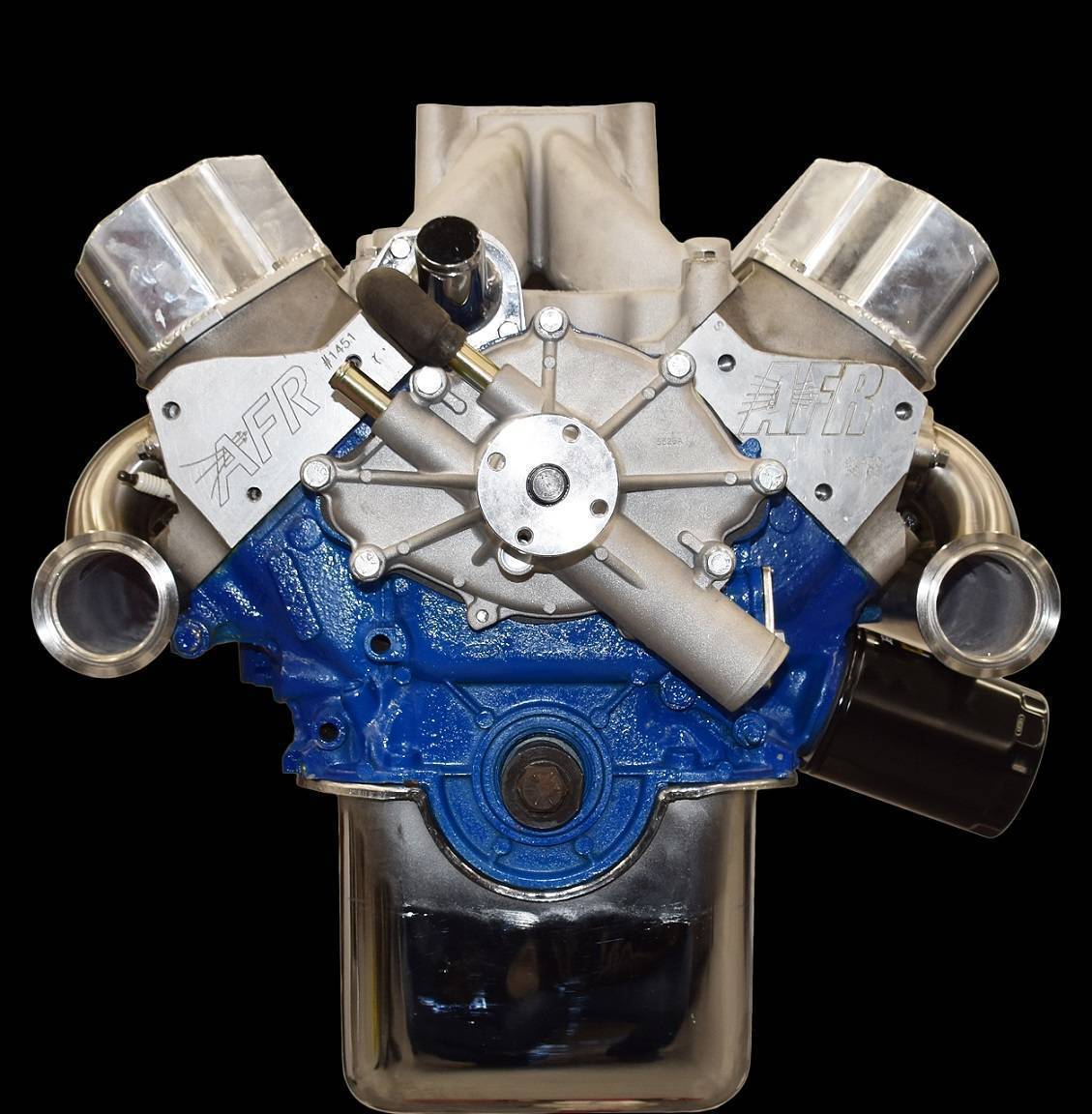

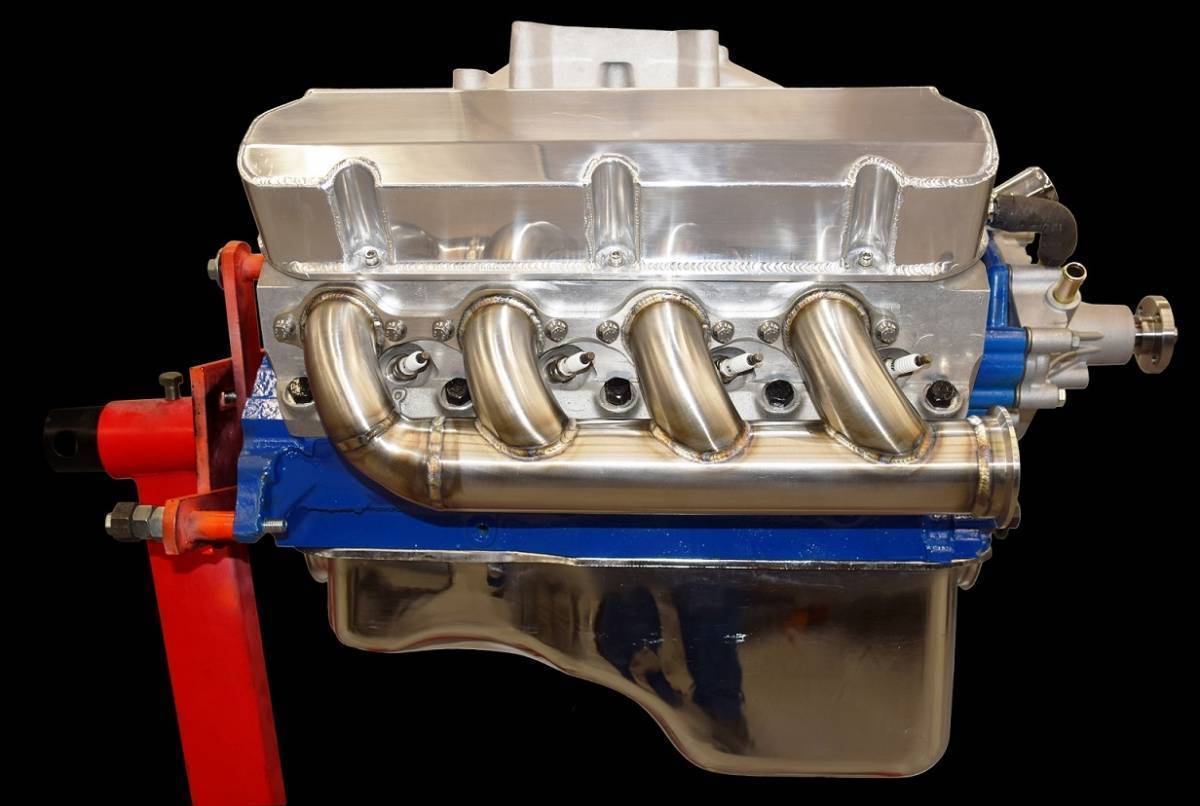

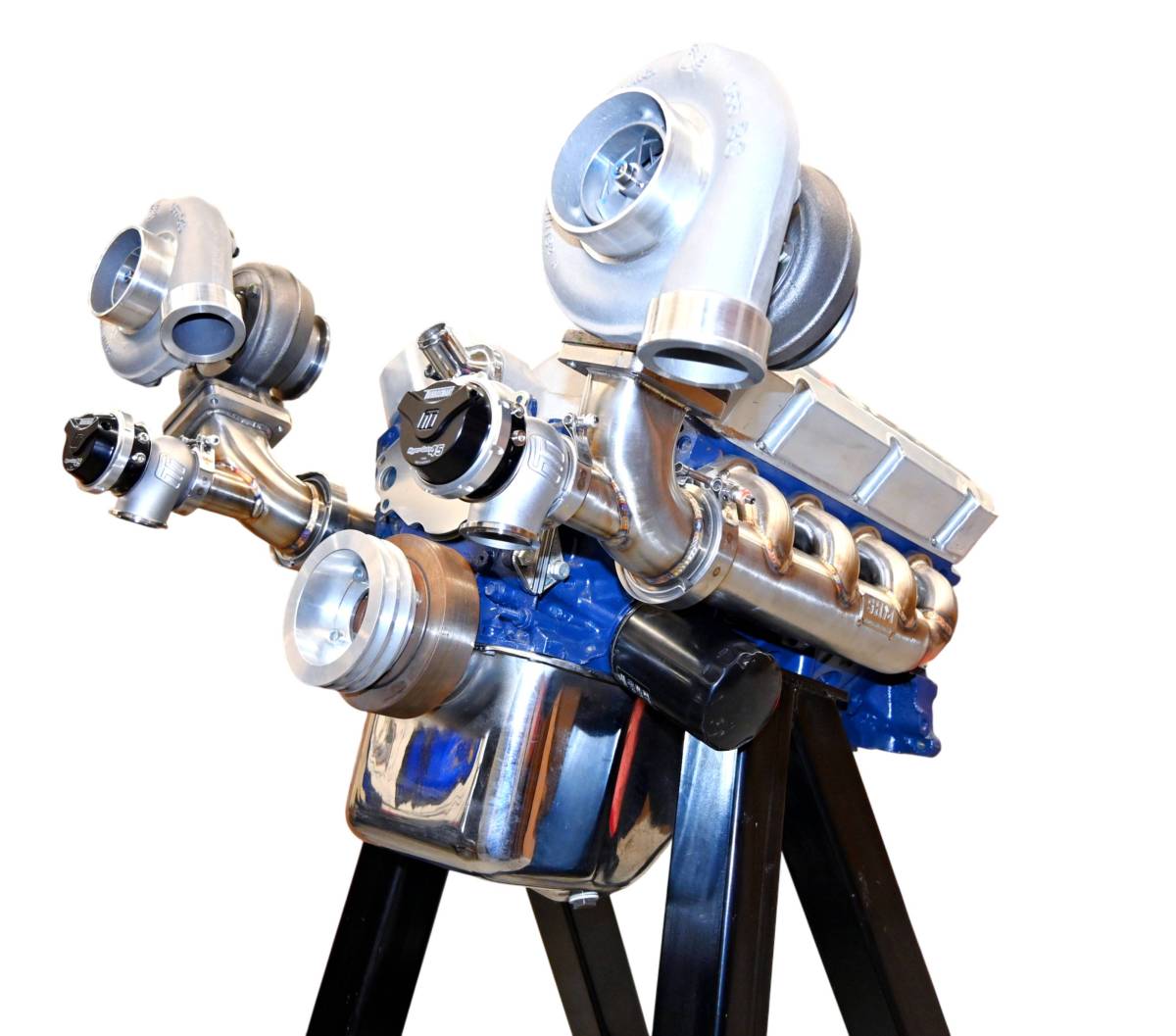

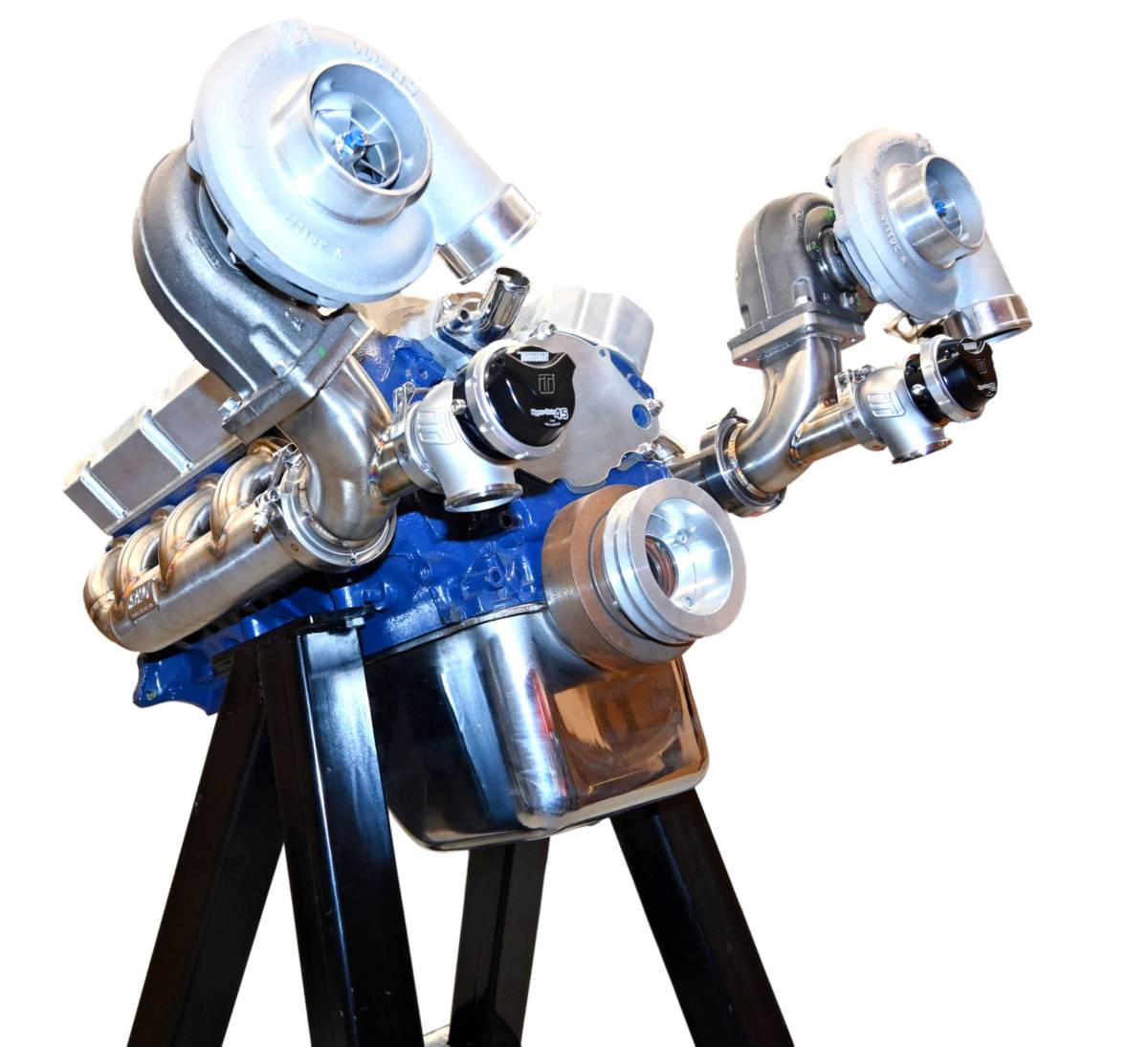

Bolt-on Small Block Ford Victor Senior + Track 1 Turbo Headers

Designed to fit the 2.50" bolt pattern aftermarket Ford cylinder heads like Edelbrock Victor Senior and Brodix Track 1's., these bolt-on turbo headers are the perfect solution to any turbo header packaging concerns. Made of heavy wall, American Made stainless steel pipe, these modular log manifolds can handle the heat and vibrations that come from a turbocharged engine build.

CONFIRM YOUR BOLT PATTERN PRIOR TO PURCHASING-these are for 2.50"  Bolt Pattern Heads ONLY.

The beauty behind this design? The builder never has to touch a tig welder or strike an arc. Every component can be bolted and pieced together in a modular fashion, without every worrying about the strength or quality of the builder's welds and fabrication. The compact design also allows use of these modular turbo headers in small engine bays. The heavy wall construction of these manifolds means less heat-absorption by the tubing, which means less energy produced by the engine's combustion process is wasted as heat, and is instead conserved as energy and velocity going to your turbos. This also leads to cooler engine bay temperatures, which can also improve intake air temps, increasing the density of oxygen in the air, leading to further power gains.

We recommend builders start off with the base manifolds prior to adding in the additional elbows to meet your turbo mount points.

 We do NOT offer returns or refunds if you order the wrong bolt pattern.

For further information, check the Returns/Shipping policy. Any questions or concerns, call the shop for further information. Ceramic coated products are NOT returnable nor refundable items. **



The initial set up will come with:

(2) 1/2" thick 304 SS header flanges with a 2" round port in the header flange.

-The flanges for the 2.5" bolt space Edelbrock/Brodix heads come with a custom machine job, utilizing the same port shape and smoothly transitioning to 2" round for a smooth, laminar flow.

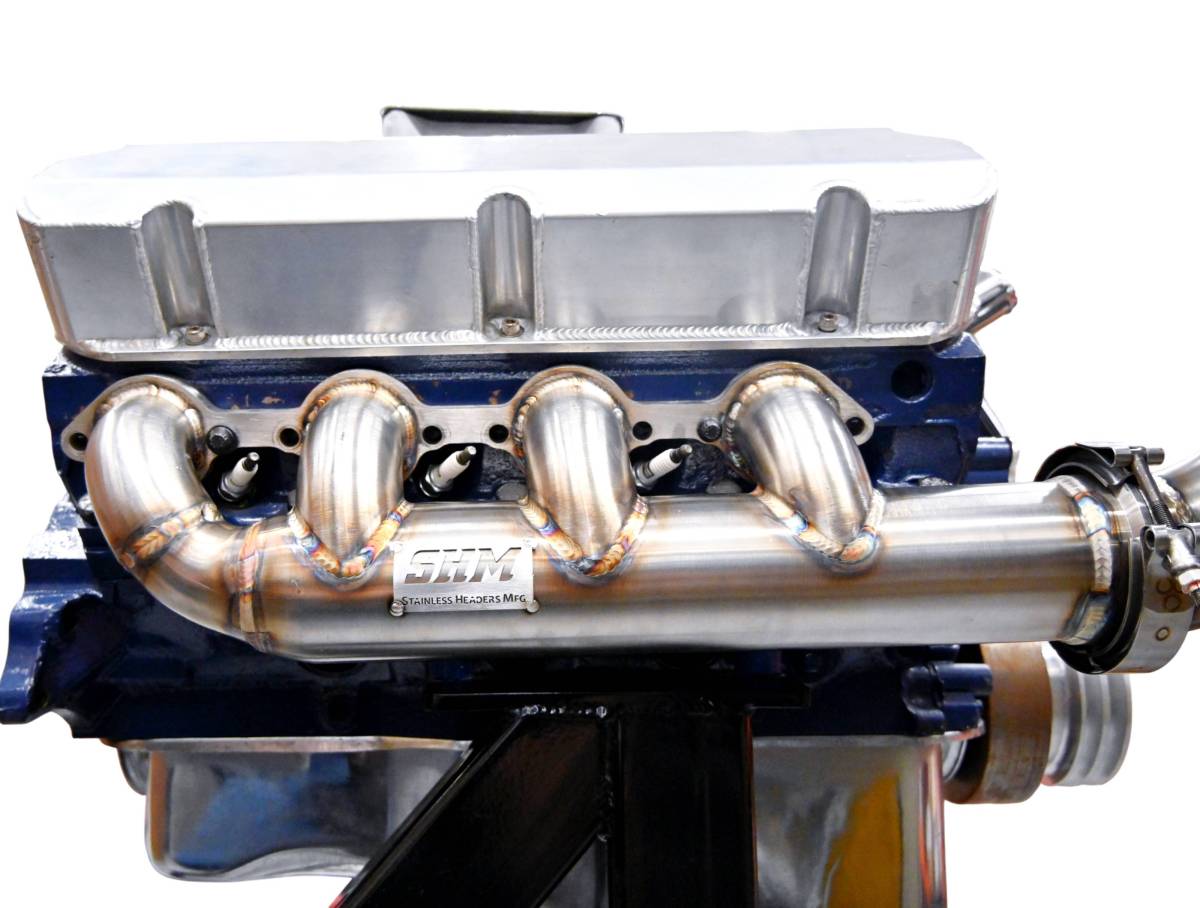

(8) Purge Tig Welded primaries coped into a compound manifold, made of 0.120" heavy wall pipe, 304 SS.

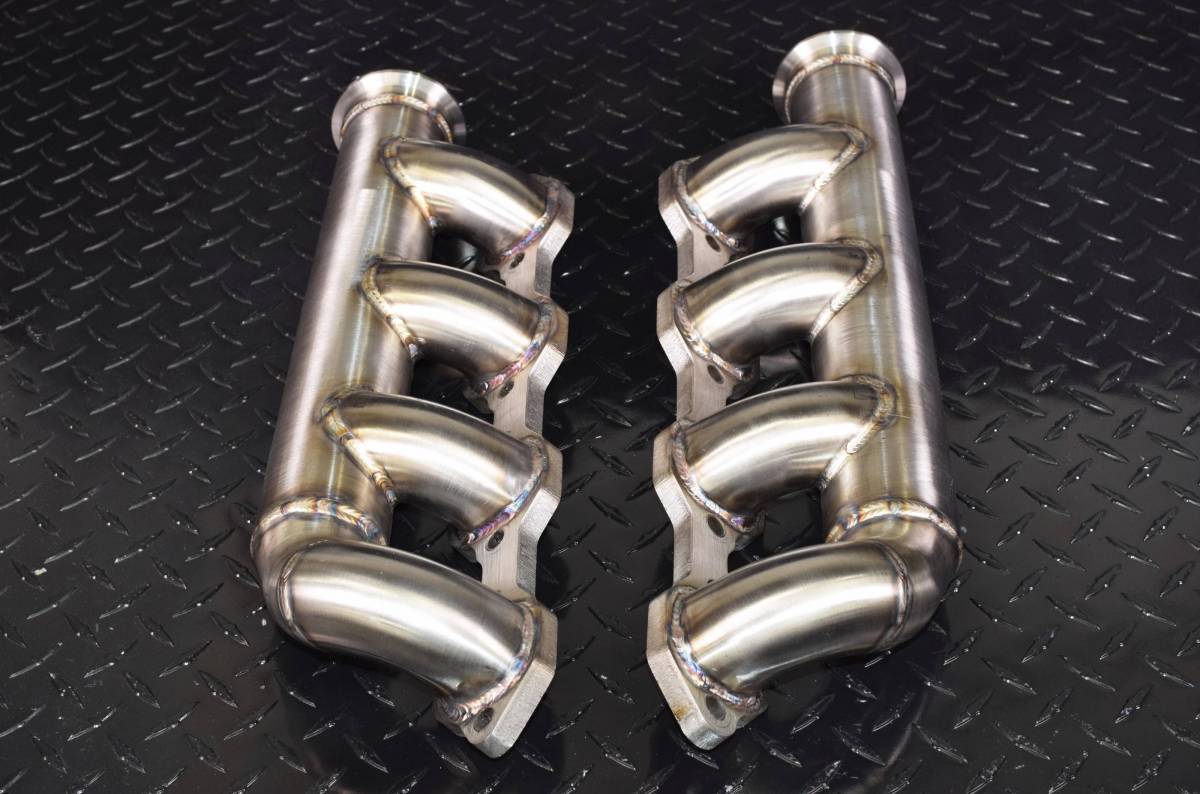

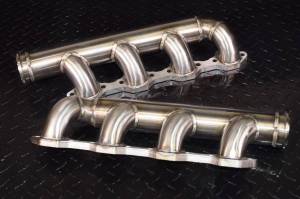

(2) Compound log manifolds with a 2 1/2" outside diameter, kept tight against the engine block for tight engine bay applications, ending with a 2 1/2" v-band flange for additional modular components

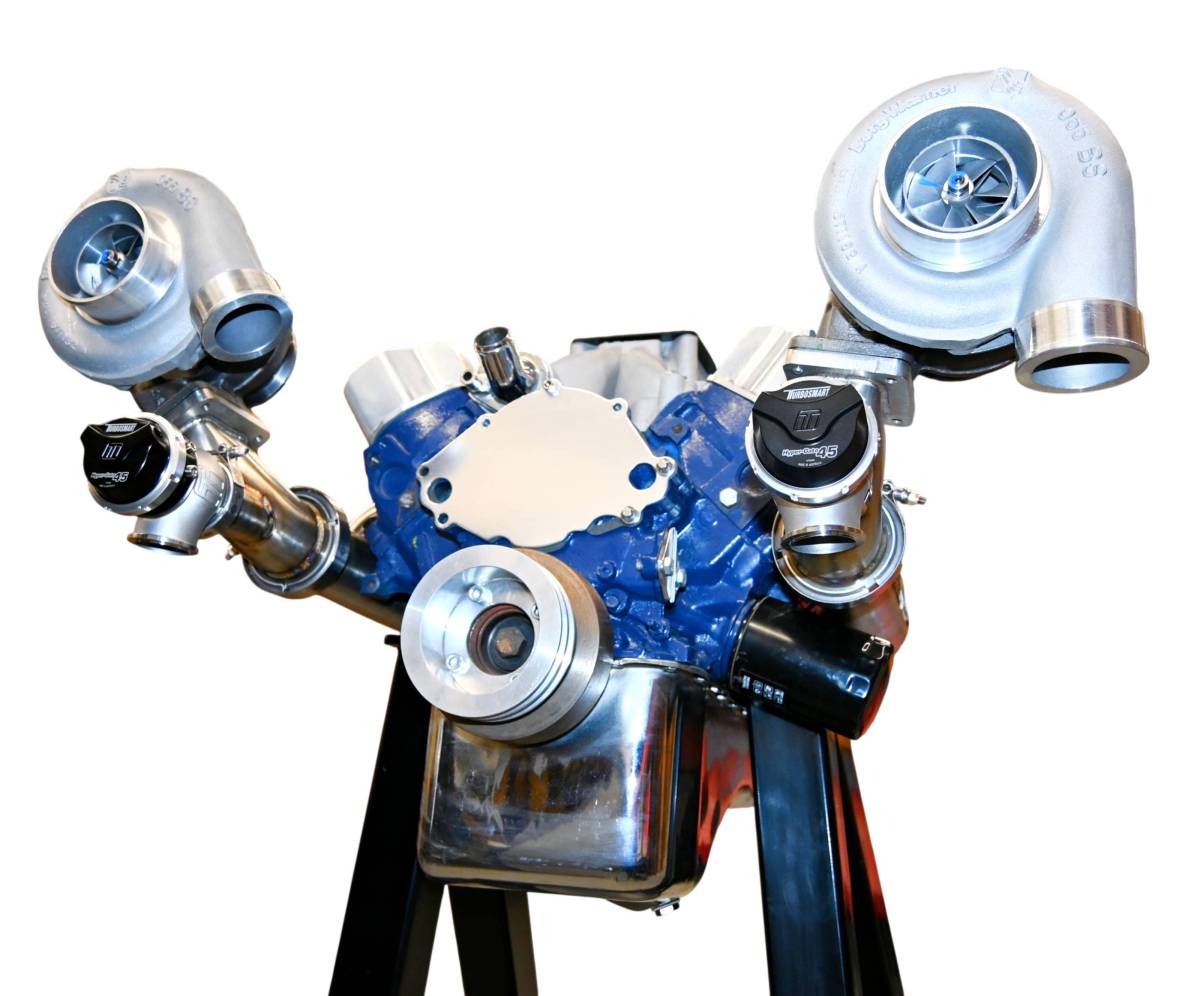

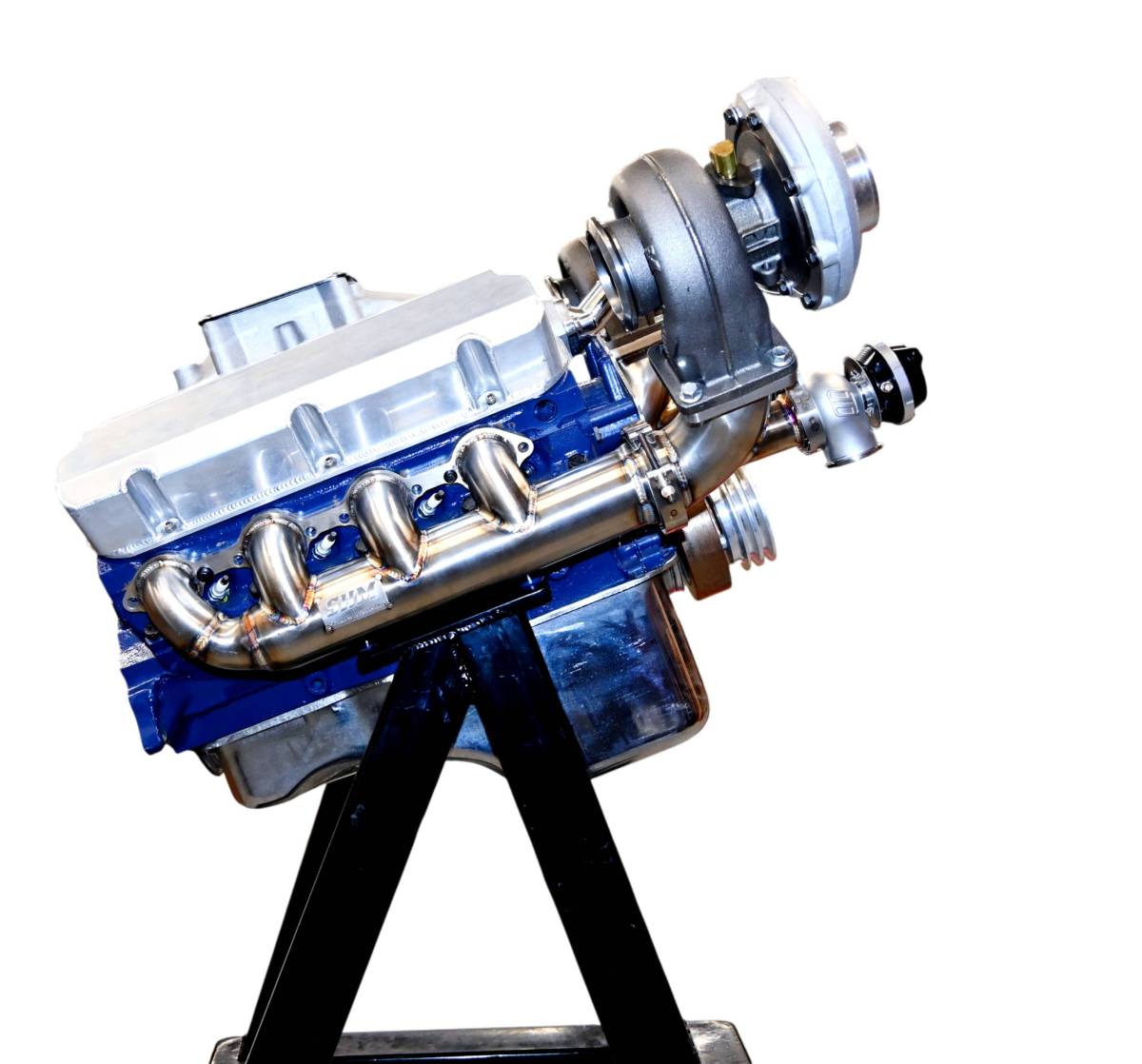

Not seeing what you need? Not a problem- We can custom build turbo elbows to fit your turbo header needs.



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W25.0000” x H13.0000” x L13.0000”
  • Free GROUND Shipping
