BorgWarner S200-SX Turbo Charger- 46mm #177258
SHM-BWS200SX-46
BorgWarner S200-SX Turbo Charger- 46mm #177258
Pricing:
$809.95
Description

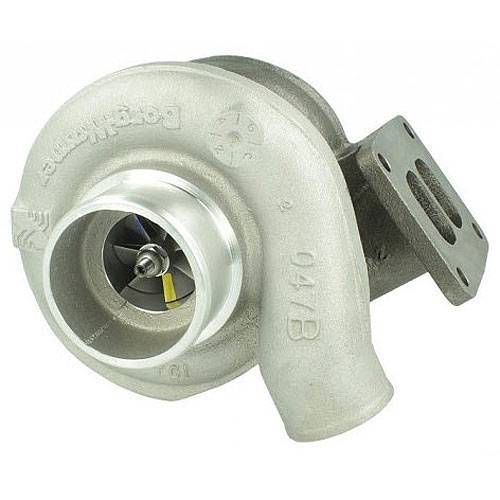

This BorgWarner S200-SX Turbo has an A/R of .83, T3/T4 VTF inlet flange, twin scroll housing, 46 mm compressor inducer, 61 mm exducer, and an 70 mm turbine wheel. This is a complete turbocharger, ready to bolt on to any application with a horsepower range of 220-580 HP per turbo.

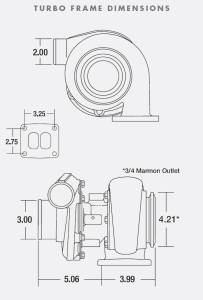

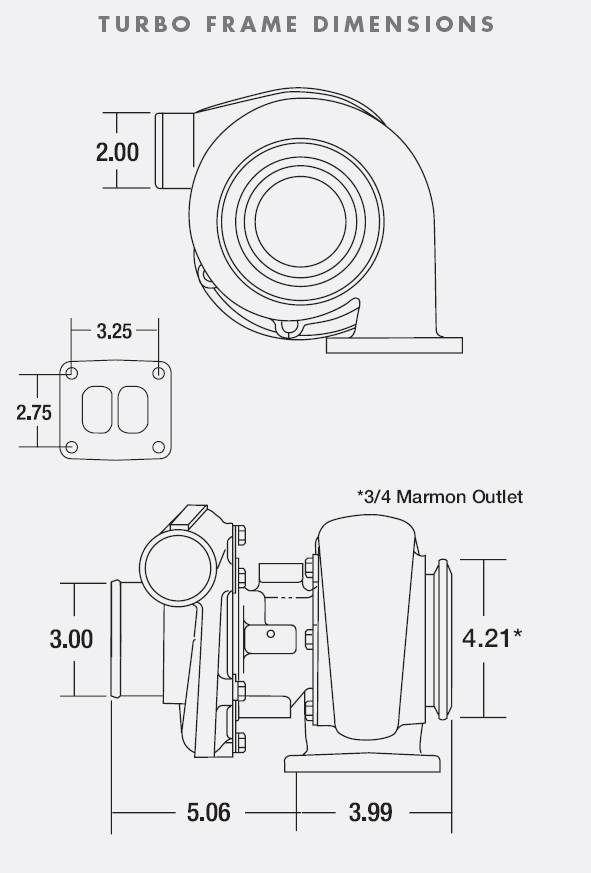

S200SX Turbocharger
- 46mm / 1.81'' Compressor Inducer Dia.
- 70mm/2.74'' Compressor Wheel O.D.
- 61mm/2.42'' Turbine Exducer Dia.
- 70mm/2.74'' Turbine Wheel O.D.
- 0.83 Turbine A/R
- T3/T4 VTF Twin Flow Turbine Inlet
- Straight Compressor Outlet
- 3" Air Inlet
- 4.21" x 3/4 Marmon Flange Outlet
- BorgWarner #177258
Have any questions? Give one of our specialists a call.
Check out our bolt on turbo headers for your complete turbo system, complete with true American made materials. With over 250 header flange designs on hand, we can meet your needs on any application.
Details
- SHM-BWS200SX-46
- SHM-BWS200SX-46
- BorgWarner
- New
Shipping Information
- Item Requires Shipping
- 30.0 lbs.
- W15.0000” x H15.0000” x L13.0000”
- Free GROUND Shipping
- This item ships in its own box.
