BorgWarner S200-SX Turbo Charger- 50mm #177267

(0) Reviews: Write first review
SHM-BWS200SX-50
BorgWarner S200-SX Turbo Charger- 50mm #177267
Please Call for Availability
1-800-290-3920
Availability: Current ETA from BWA is 42-48 days

Description

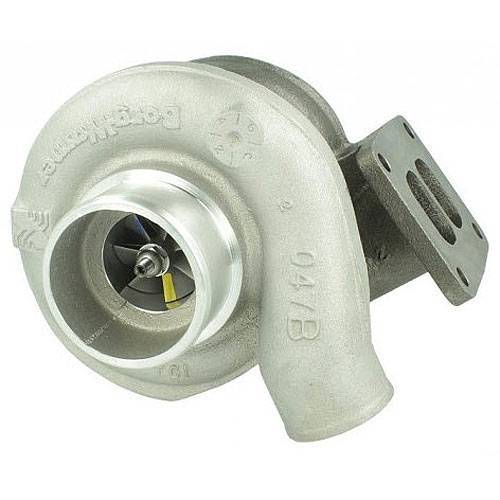

This BorgWarner S200-SX Turbo has an A/R of 1.09, T3/T4 VTF inlet flange, twin scroll housing, 50 mm compressor inducer, 61 mm exducer, and an 70 mm turbine wheel. This is a complete turbocharger, ready to bolt on to any application with a horsepower range of 220-580 HP per turbo.

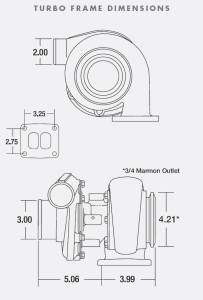

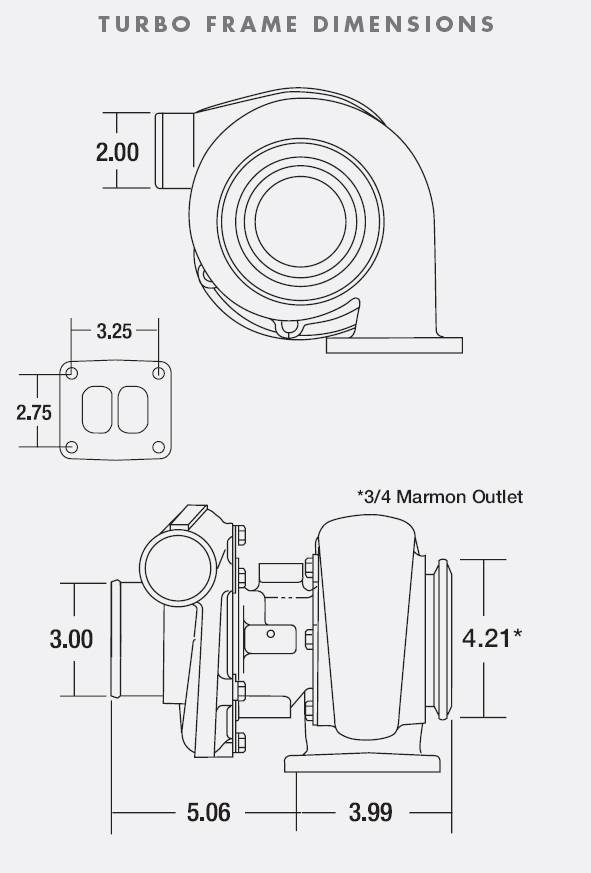

S200SX Turbocharger

  • 50mm / 1.95'' Compressor Inducer Dia.
  • 70mm/2.74'' Compressor Wheel O.D.
  • 61mm/2.42'' Turbine Exducer Dia.
  • 70mm/2.74'' Turbine Wheel O.D.
  • 1.09 Turbine A/R
  • T3/T4 VTF Twin Flow Turbine Inlet
  • Straight Compressor Outlet
  • 3" Air Inlet
  • 4.21" x 3/4 Marmon Flange Outlet
  • BorgWarner #177267

Details

  • SHM-BWS200SX-50
  • SHM-BWS200SX-50
  • BorgWarner
  • Current ETA from BWA is 42-48 days
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W15.0000” x H15.0000” x L15.0000”
  • Free GROUND Shipping
  • This item ships in its own box.
