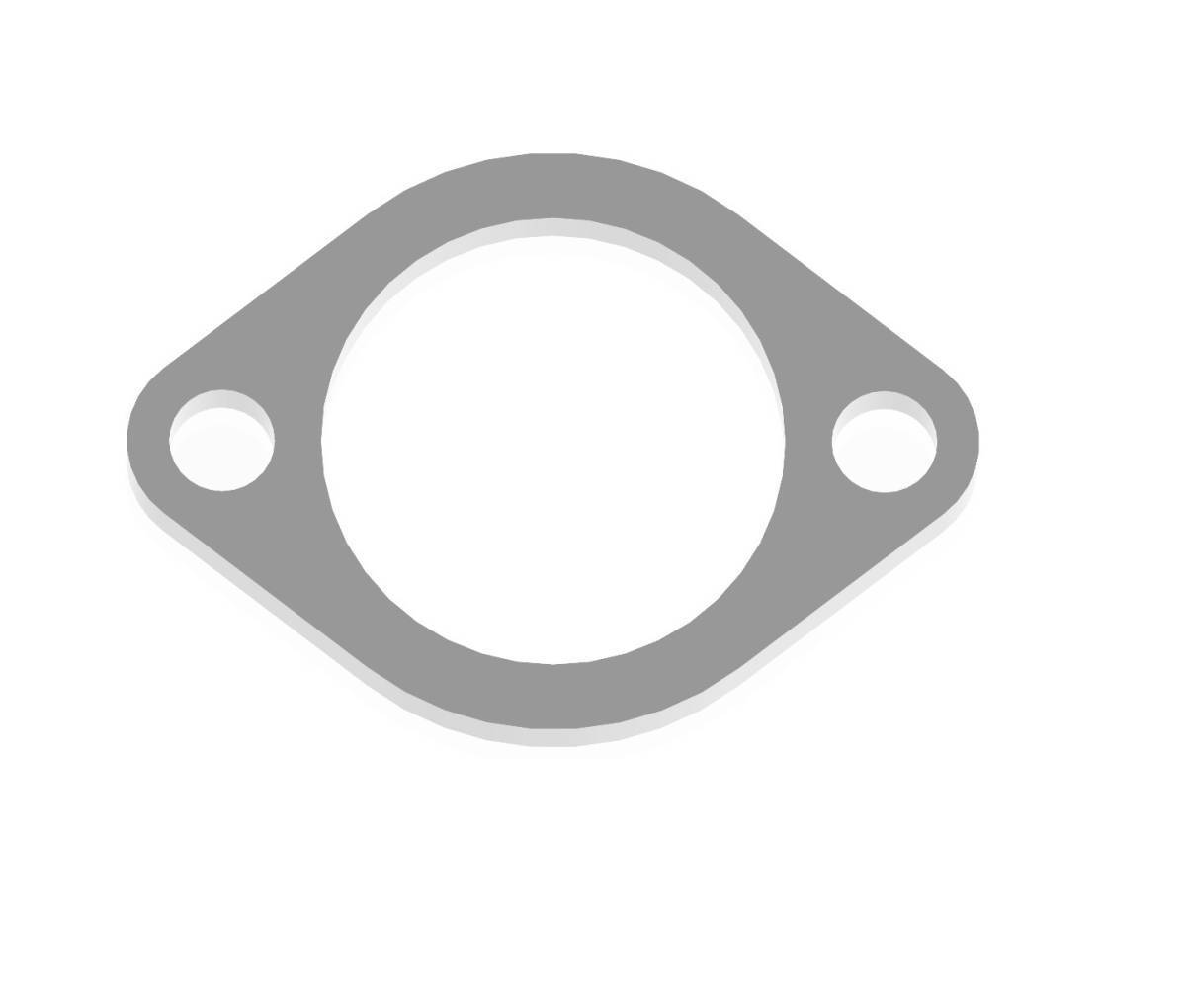

Lycoming 2-Bolt Stainless Header Flange

Precision laser cut from 1/4" thick 304 Stainless Steel, our header flanges are manufactured in the U.S. and are machine surfaced. These header flanges are specifically made for Lycoming engines with a 2-bolt style exhaust flange. This fits all parallel and angle valve heads, including O-290, O-320, IO-320, O-340, O-360, IO-360, IO-540, and IO-720 engines. They also mate well with other subsets of engines, such as AEIO-360 applications.

These flanges will NOT fit Turbocharged engines, such as TIO-540 applications.

These flanges are 1/4" thick, and have 1.75" exhaust port size.

We carry over 450 different header flange designs, so if you don't see the flange you're looking for, talk with one our tech reps about custom header flange cutting.

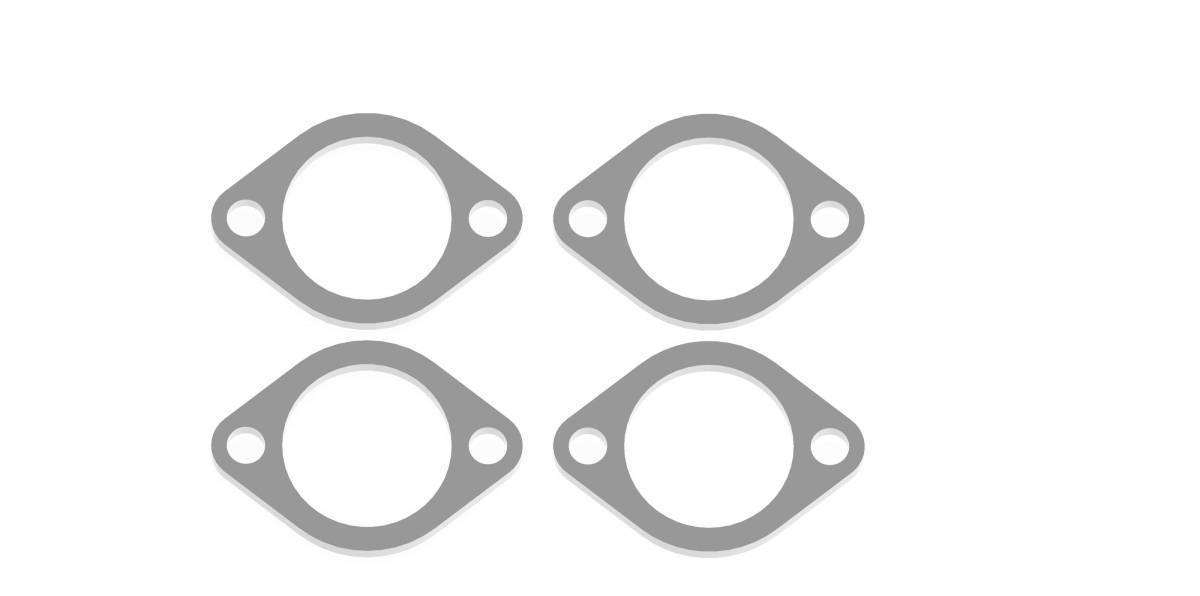

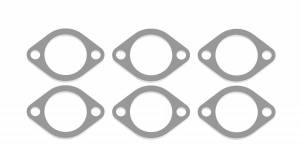

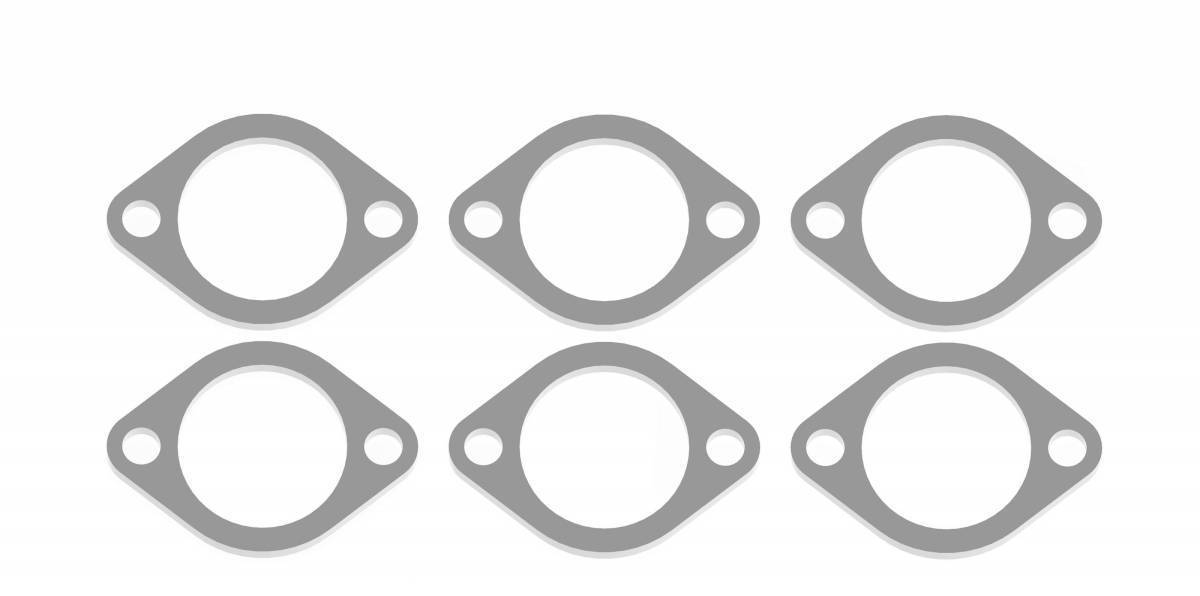

Flanges sold separately or in sets of 4 or 6.

These are for automotive, marine, off-road, or racing use only. These are NOT approved for certified aircraft applications.
